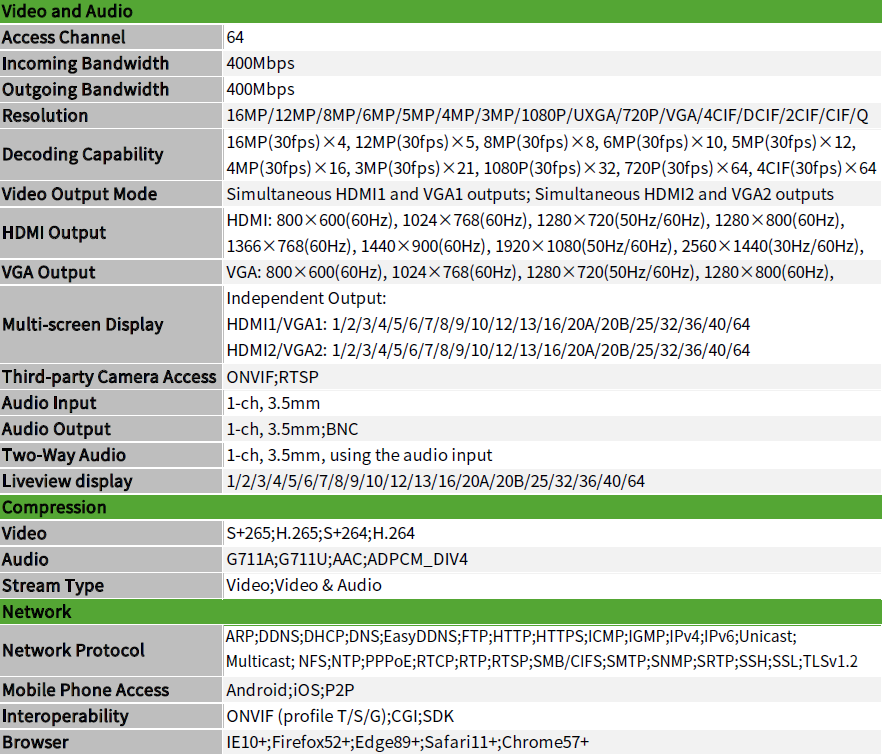

• Up to 64-ch IP camera inputs
• Incoming/Outgoing bandwidth at 400Mbps/400Mbps
• S+265, H.265, S+264, H.264 video formats
• 16MP(30fps)×4, 12MP(30fps)×5, 8MP(30fps)×8,
6MP(30fps)×10, 5MP(30fps)×12, 4MP(30fps)×16,
3MP(30fps)×21, 1080P(30fps)×32 decoding capacity
• 16-ch synchronous playback
• Up to 10 TB capacity for each HDD
• ANR
• Independent HDMI1 and HDMI2 outputs; Simultaneous HDMI1 and VGA1 outputs
• HDMI output at up to 4K resolution
• 2×RJ-45, 10/100/1000 Mbps self-adaptive Ethernet port
• S+ 265 compression effectively reduces the storage space by up to 75%
• Support cloud upgrade
• Redundant power
• RAID
| Date | Title | Type | Download |
|---|---|---|---|
| 2024-09-04 | TC-R31664 Spec E-B-R-N-K-V4.0 |
|
