·Up to 4-ch IP camera inputs
·Access/forwarding bandwidth at 60Mbps/40Mbps
·S+265, H.265, S+264, H.264 video formats
·5MP(30fps)×1, 4MP(30fps)×1, 3MP(30fps)×1, 1080P(30fps)×2 preview decoding capacity
·4-ch synchronous playback
·5MP(30fps)×1, 4MP(30fps)×1, 3MP(30fps)×1, 1080P(30fps)×2 playback decoding capacity
·Up to 6TB capacity for each HDD
·1×HDMI output
·HDMI output at up to 1080P resolution
·1×RJ-45, 10/100 Mbps self-adaptive Ethernet port
·PoE Interface, 4×RJ45, 10/100 Mbps self-adaptive Ethernet port
·S+ 265 compression effectively reduces the storage space by up to 75%
·Support cloud upgrade
|
Video and Audio |
|
|
Access Channel |
4 |
|
Incoming Bandwidth |
60Mbps |
|
Outgoing Bandwidth |
40Mbps |
|
Resolution |
5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
|
Preview Decoding Capability |
5MP(30fps)×1, 4MP(30fps)×1, 3MP(30fps)×1, 1080P(30fps)×2, 720P(30fps)×4, 4CIF(30fps)×4 |
|
Third-party Camera Access |
ONVIF; RTSP |
|
HDMI Output |
HDMI:1024×768(60Hz), (720P )1280×720(50Hz/60Hz), 1280×800(60Hz), 1440×900(60Hz), (1080P)1920×1080(50Hz/60Hz) |
|
Multi-screen Display |
1/3/4 |
|
Compression |
|
|
Video |
S+265; H.265; S+264; H.264 |
|
Audio |
G711A; G711U; ADPCM_DIV4 |
|
Stream Type |
Video; Video & Audio |
|
Network |
|
|
Network Protocol |
ARP; DDNS; DHCP; DNS; Easy DDNS; HTTP; ICMP; IGMP; IPv4; IPv6; NTP; RTCP; RTP; RTSP; SSH; TCP/IP; UDP; UPnP |
|
Mobile Phone Access |
Android; iOS; P2P_A |
|
System Compatibility |
CGI; SDK |
|
Web |
IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+ |
|
Record Playback |
|
|
Multi-channel Playback |
4 |
|
Record Mode |
Alarm recording; Schedule recording |
|
Storage Method |
Local HDD |
|
Backup |
USB storage device |
|
Playback Function |
Play/Pause/Stop/Slow/Speed/Backwards 30s/Forwards 30s/Full screen/backup (video Editing) |
|
Alarm |
|
|
General Alarm |
Motion; Mask Alarm; Video Loss |
|
Exceptions Alarm |
IP Conflict; MAC Conflict; Network Disconnected; No disk; Illegal Access; Disk Full; Disk R/W error; Video Abnormal; Abnormal found in smart of disk; Abnormal temperature of the disk; PoE overloaded; IPC voltage abnormal; RTC failure |
|
Intelligent Analytics |
|
|
AI by Camera |
Advanced Intelligence |
|
Storage |
|
|
HDD Capacity |
Up to 6TB capacity for each HDD |
|

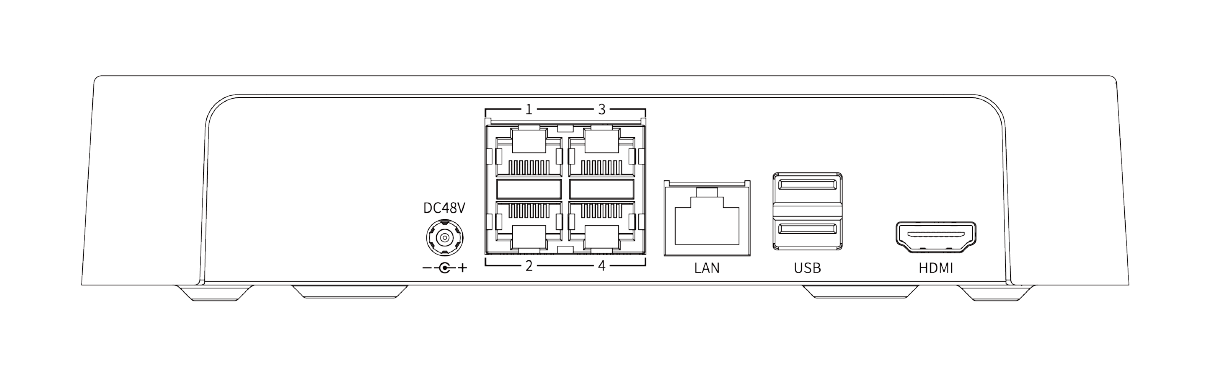

External Port |
|
|
USB |
2×USB2.0 |
|
HDMI |
1×HDMI |
|
Network Interface |
1×RJ-45, 10/100 Mbps self-adaptive Ethernet port |
|
SATA |
1×SATA interface |
|
PoE |
|
|
PoE Interface |
4×RJ45, 10/100 Mbps self-adaptive Ethernet port |
|
PoE Budget |
28W |
|
Power per PoE Port |
28W |
|
Standard |
IEEE 802.3 af/at |
|
General |
|
|
UI Language |
English; Spanish; Italian; Turkish; French; Polish; Dutch; Hebrew; German; Portuguese |
|
Power Supply |
DC48V 1A |
|
Power Consumption |
<10W(without HDD&without PoE) |
|
NetWeight |
0.4kg |
|
GrossWeight |
0.85kg |
|
Boundary Dimensions |
200(L)200(W)43(H)mm |
|
Package Dimensions |
315(L)70(W)235(H)mm |
|
Operating Temperature |
-10℃~+55℃ |
|
Operating Humidity |
10%~90%RH |
|
Storage Temperature |
-10℃~+55℃ |
|
Storage Humidity |
10%~90%RH |
|
Package Kit |
Network Video Recorder; Screw pack; Mouse; Power adapter |
