·Up to 10-ch IP camera accesses
·Incoming/Outgoing bandwidth: 80Mbps/80Mbps
·S+265, H.265, S+264, H.264 video formats
·Max. decoding capability: 8MP(30fps)×2 or 1080P(30fps)×8
·10-ch synchronous playback
·Up to 10 TB capacity for each HDD
·Simultaneous HDMI and VGA outputs
·HDMI output at up to 4K resolution
·1×RJ-45, 10/100 Mbps self-adaptive Ethernet port
·S+ 265 compression effectively reduces the storage space by up to 75%
·Support cloud upgrade
|
Video and Audio |
|
|
Access Channel |
10 |
|
Incoming Bandwidth |
80Mbps |
|
Outgoing Bandwidth |
80Mbps |
|
Resolution |
8MP/6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
|
Preview Decoding Capability |
8MP(30fps)×2, 6MP(30fps)×2, 5MP(30fps)×3, 4MP(30fps)×4, 3MP(30fps)×5, 1080P(30fps)×8, 720P(30fps)×10, 4CIF(30fps)×10; *: The length or width of camera resolution (each track) cannot exceed 4096 pixels. |
|
Playback Decoding Capability |
8MP(30fps)×2, 6MP(30fps)×2, 5MP(30fps)×3, 4MP(30fps)×4, 3MP(30fps)×5, 1080P(30fps)×8, 720P(30fps)×10 |
|
Third-party Camera Access |
ONVIF; RTSP |
|
HDMI Output |
HDMI: 1024×768(60Hz), (720P )1280×720(50Hz/60Hz), 1280×800(60Hz), 1440×900(60Hz), (1080P)1920×1080(50Hz/60Hz), (2K)2560×1440(30Hz), (4K)3840×2160(30Hz) |
|
VGA Output |
VGA: 1024×768(60Hz), (720P )1280×720(50Hz/60Hz), 1280×800(60Hz), 1440×900(60Hz), (1080P)1920×1080(50Hz/60Hz) |
|
Multi-screen Display |
Simultaneous Output: VGA: 1/2/3/4/5/6/7/8/9/10 HDMI: 1/2/3/4/5/6/7/8/9/10 |
|
Audio Input |
1-ch, 3.5mm |
|
Audio Output |
1-ch, RCA (Linear, 1 KΩ) |
|
Two-Way Audio |
1-ch, 3.5mm, using the audio input |
|
Compression |
|
|
Video |
S+265; H.265; S+264; H.264 |
|
Audio |
G711A; G711U; AAC; ADPCM_DIV4 |
|
Stream Type |
Video; Video & Audio |
|
Network |
|
|
Network Protocol |
802.1X; ARP; DDNS; DHCP; DNS; Easy DDNS; FTP; HTTP; HTTPS; ICMP; IGMP; IPv4; IPv6; Multicast; NFS; NTP; PPPoE; RTCP; RTP; RTSP; SMB/CIFS; SMTP; SNMP v1/v2/v3; SRTP; SSH; SSL; TLSv1.2, TLSv1.3; TCP/IP; UDP; Unicast; UPnP |
|
Mobile Phone Access |
Android; iOS; P2P |
|
System Compatibility |
ONVIF(Profile S/T/G); RTSP; CGI; SDK; Milestone |
|
Web |
IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+ |
|
Record Playback |
|
|
Multi-channel Playback |
10 |
|
Record Mode |
Manual Recording; Alarm Recording; Schedule Recording |
|
Storage Method |
Local HDD |
|
Backup |
USB storage device, Network |
|
Playback Function |
Play/Pause/Stop/Slow/Speed/Backwards 30s/Forwards 30s/Full Screen/Backup (Video Editing)/Step/Digital Zoom |
|
Dual Stream Record |
Yes |
|
Alarm |
|
|
General Alarm |
Motion Detection; Mask Alarm; Alarm Input(IPC); Alarm Input(NVR); Manual Alarm |
|
Exceptions Alarm |
Video Loss; IP Conflict; MAC Conflict; Network Disconnected; No Disk; Illegal Access; Disk group space alert; Disk Full; Disk R/W Error; Recording Abnormal; Abnormal found in smart of disk; Abnormal temperature of the disk; Voltage Alarm(IPC); RTC Failure |
|
Intelligent Analytics |
|
|
AI by Camera |
Tripwire; Double Tripwire; Perimeter; Object Abandon; Object Missing; Loiter; Running; Parking; Video Abnormal; Audio Abnormal; On Duty Detection; Crowd Detection; Safety Helmet Detection; People Counting; Link to Tracking; Face Detection; Smart Motion; Human/Vehicle Classification |
|
VCA Search |
Heatmap; Early-warning Search; Behavior Search |
|
Storage |
|
|
HDD Capacity |
Up to 10 TB capacity for each HDD |
|
Disk Group |
1 Disk Group |
|

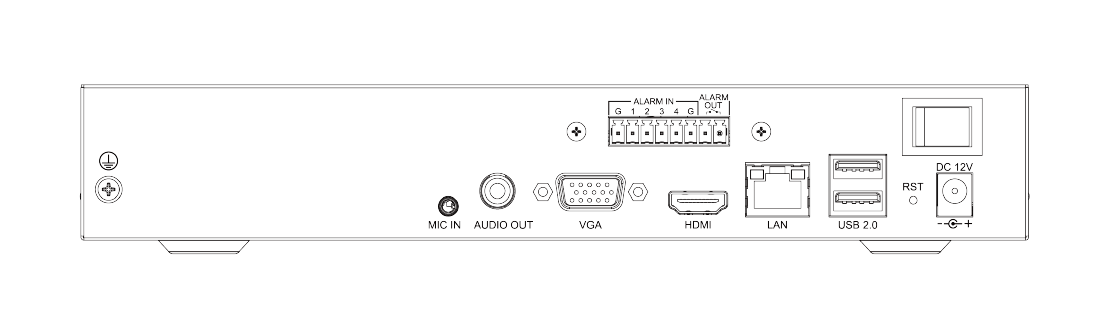

External Port |
|
|
USB |
2×USB2.0 |
|
HDMI |
1×HDMI(supports up to 4K resolution output) |
|
VGA |
1×VGA |
|
Network Interface |
1×RJ-45, 10/100 Mbps self-adaptive Ethernet port |
|
SATA |
1×SATA interface |
|
Alarm I/O |
4-ch, TTL inputs, 3mA, 3.3VDC; 1-ch, relay output, 1A, 24VDC |
|
General |
|
|
UI Language |
Simple Chinese; Traditional Chinese; English; Spanish; Korean; Italian; Turkish; Russian; Thai; French; Polish; Dutch; Hebrew; Arabic; Vietnamese; German; Ukrainian; Portuguese; Albanian |
|
Power Supply |
DC12V 3.3A |
|
Power Consumption |
<10W(HDD not included, idling) |
|
NetWeight |
0.9 kg |
|
GrossWeight |
1.6kg |
|
Boundary Dimensions |
255(L)231(W)45(H)mm |
|
Package Dimensions |
385(L)80(W)280(H)mm |
|
Operating Temperature |
-10℃~+55℃ (+14℉~+131℉) |
|
Operating Humidity |
10%~90%RH (non-condensing) |
|
Storage Temperature |
-20℃~+60℃ (-4℉~+140℉) |
|
Package Kit |
Network Video Recorder; Screw Pack; Mouse; Power Adapter; European Standard Power Cord |
