·Up to 10-ch IP camera inputs
·Access/forwarding bandwidth at 80Mbps/80Mbps
·S+265, H.265, S+264, H.264 video formats
·4MP(30fps)×1, 3MP(30fps)×2, 1080P(30fps)×3 preview decoding capacity
·4-ch synchronous playback
·4MP(30fps)×1, 3MP(30fps)×2, 1080P(30fps)×3 playback decoding capacity
·Up to 10TB capacity for each HDD
·Simultaneous HDMI and VGA outputs
·HDMI output at up to 1080P resolution
·1×RJ-45, 10/100 Mbps self-adaptive Ethernet port
·S+ 265 compression effectively reduces the storage space by up to 75%
·Support cloud upgrade
|
Video and Audio |
|
|
Access Channel |
10 |
|
Incoming Bandwidth |
80Mbps |
|
Outgoing Bandwidth |
80Mbps |
|
Resolution |
6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
|
Preview Decoding Capability |
4MP(30fps)×1, 3MP(30fps)×2, 1080P(30fps)×3, 720P(30fps)×6, 4CIF(30fps)×10 |
|
Third-party Camera Access |
ONVIF; RTSP |
|
HDMI Output |
HDMI:800×600(60Hz), 1024×768(60Hz), 1280×720(50Hz/60Hz), 1280×800(60Hz), 1366×768(60Hz), 1440×900(60Hz), (1080P)1920×1080(50Hz/60Hz) |
|
Liveview display |
Simultaneous Output: VGA: 1/2/3/4/6/8/9/10 HDMI: 1/2/3/4/6/8/9/10 |
|
VGA Output |
VGA:800×600(60Hz), 1024×768(60Hz), 1280×720(50Hz/60Hz), 1280×800(60Hz), 1366×768(60Hz), 1440×900(60Hz), 1920×1080(50Hz/60Hz) |
|
Multi-screen Display |
1/2/3/4/6/8/9/10 |
|
Audio Input |
1-ch, 3.5mm |
|
Audio Output |
1-ch, RCA (Linear, 1 KΩ) |
|
Two-Way Audio |
1-ch, 3.5mm, using the audio input |
|
Compression |
|
|
Video |
S+265; H.265; S+264; H.264 |
|
Audio |
G711A; G711U; ADPCM_DIV4 |
|
Stream Type |
Video; Video & Audio |
|
Network |
|
|
Network Protocol |
ARP; DDNS; DHCP; DNS; FTP; HTTP; HTTPS; ICMP; IPv4; NFS; NTP; PPPoE; RTCP; RTP; RTSP; SMTP; SNMP; SSL; TCP/IP; Telnet; UDP; UPnP |
|
Mobile Phone Access |
Android; iOS; P2P_T |
|
System Compatibility |
ONVIF(profile T/S); RTSP; CGI; SDK |
|
Web |
IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+ |
|
Record Playback |
|
|
Multi-channel Playback |
4 |
|
Record Mode |
Manual recording; Alarm recording; Schedule recording |
|
Storage Method |
Local HDD, eSATA |
|
Backup |
USB storage device, eSATA, Network |
|
Playback Function |
Play/Pause/Stop/Slow/Speed/Backwards 30s/Forwards 30s/Full screen/backup (video Editing)/Step/Digital Zoom |
|
Alarm |
|
|
General Alarm |
Motion; Mask Alarm; Alarm Input(IPC); Video Loss; Alarm Input(NVR); Manual Alarm |
|
Exceptions Alarm |
IP Conflict; MAC Conflict; Network Disconnected; No disk; Illegal Access; Disk Full; Disk R/W error; Video Abnormal; Abnormal found in smart of disk; Abnormal temperature of the disk; Hot-spare Exception |
|
Intelligent Analytics |
|
|
AI by Camera |
Tripwire; Double Tripwire; Perimeter; Object Abandon; Object Missing; Loiter; Running; Parking; Heatmap; Lens Dignose; Scene Switch Dignose; Signal Abnormal Detection; Signal Loss Detection; On Duty Detection; Crowd Detection; Link To Tracking; Face Detection; Human body temperature measurement; Face Recognition |
|
AI by NVR |
Face Detection; Face Recognition |
|
VCA Search |
Heatmap; Early-warning search; Behavior Search; Thermographic retrieval; Facial search |
|
Face Detection |
|
|
Face Attributes |
Gender; age; glasses; mouth mask; Body temp. |
|
Face Recognition |
|
|
Performance |
1-ch video streams; 10-ch image streams |
|
Face Picture Library |
Up to 32 face libraries Up to 10000 base images |
|
Face Picture Comparison |
Face Picture Comparison |
|
Comparison Speed(Captured from Camera) |
10 pictures per second |
|
Comparison Speed(Captured from NVR) |
1 pictures per second |
|
Storage |
|
|
HDD Capacity |
Up to 10TB capacity for each HDD |
|
Disk Group |
2 Disk Group |
|

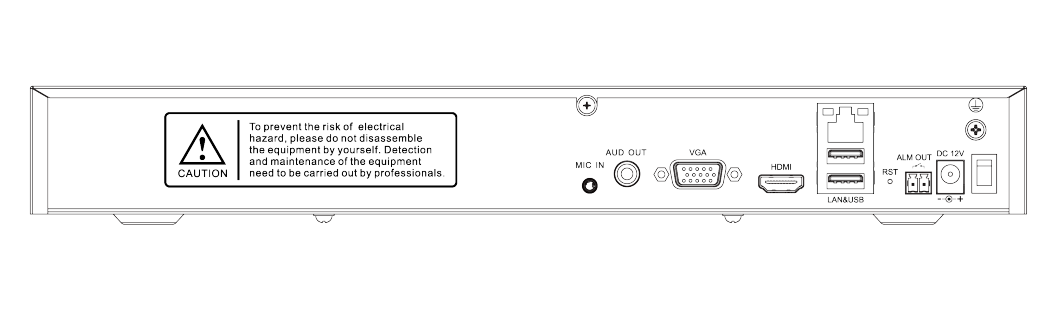

External Port |
|
|
USB |
2×USB2.0 |
|
HDMI |
1×HDMI |
|
VGA |
1×VGA |
|
Network Interface |
1×RJ-45, 10/100 Mbps self-adaptive Ethernet port |
|
SATA |
2×SATA interface |
|
Alarm I/O |
1-ch, relay output, 1A, 24VDC |
|
General |
|
|
UI Language |
Simple Chinese; Traditional Chinese; English; Spanish; Korean; Italian; Turkish; Russian; Thai; French; Polish; Dutch; Hebrew; Arabic; Vietnamese; Farsi |
|
Power Supply |
DC12V 3.3A |
|
Power Consumption |
<10W(HDD not included, idling) |
|
NetWeight |
1.6 kg |
|
GrossWeight |
3kg |
|
Boundary Dimensions |
341(L)273(W)47(H)mm |
|
Package Dimensions |
415(L)140(W)375(H)mm |
|
Operating Temperature |
-10℃~+55℃ |
|
Operating Humidity |
10%~90%RH |
|
Storage Temperature |
-10℃~+55℃ |
|
Storage Humidity |
10%~90%RH |
|
Package Kit |
Network Video Recorder; Screw pack; Mouse; Power adapter; European standard power cord |
